PalmSHIELD Elite: A New Standard in Architectural and Mechanical Equipment Screening
February 25, 2026
PalmSHIELD Elite introduces a next-generation architectural screening framework designed to meet the evolving demands of modern building design. Engineered for strength, adaptability, and visual consistency, the system supports a wide range of infill materials and finishes, making it suitable for both architectural and mechanical equipment screening applications.
From contemporary façades to rooftop enclosures that must withstand extreme environmental conditions, PalmSHIELD Elite delivers a refined balance between performance and aesthetics. The system is engineered to resist wind speeds up to 150 mph, with enhanced configurations capable of reaching up to 180 mph, positioning it for use in high-performance and hurricane-prone regions.
Engineered for Performance and Installation Efficiency
PalmSHIELD Elite is designed with a streamlined framework that reduces installation complexity while maintaining architectural precision. Minimal components and a compression-based panel mounting system eliminate the need for exposed fasteners, contributing to a clean, finished appearance.
- High wind resistance: Rated up to 150 mph, with optional reinforcement to achieve higher thresholds.
- Installation flexibility: Pre-panel post setup allows columns to be installed before panels.
- Dimensional tolerance: Vertical seams adjust to compensate for post-setting variations of ±3/8".
- Slope adaptability: Panels accommodate elevation changes from -2.5% to 12%.
- Two-sided finish: Panels present a finished appearance on both interior and exterior faces.
Architectural Precision Through Innovative Column Design
At the core of the system is PalmSHIELD’s exclusive tubular T + I-Beam column design. Removable flanges allow panels to slide into place from the backside, after which the flange is reattached to securely capture the vertical compression channel. This approach supports faster installation while maintaining a consistent 3-inch reveal around each panel.
The serrated locking edge within the column profile secures panels without additional fasteners, reducing labor time and preserving a refined architectural seam.
Extensive Infill Options for Design Flexibility
PalmSHIELD Elite supports a wide selection of infill options, enabling designers to tailor screening solutions to functional, aesthetic, and environmental requirements.
- Louvered: Maximizes airflow while maintaining full visual screening; available in multiple orientations.
- Semi-Private & Alternating: Balances openness and privacy with rhythmic plank spacing.
- Solid: Provides complete visual blockage for privacy, security, and wind protection.
- Staggered: Adds depth and texture through offset plank arrangements.
- Expanded Metal: Lightweight aluminum infill offering transparency and durability.
- Textured: Moisture- and termite-resistant panels that replicate natural materials.
- Contemporary: Premium architectural finishes designed for design-forward environments.
- Laser Cut & Illuminated: Custom-patterned aluminum panels, with optional integrated lighting.
- Faux Masonry: Lightweight polymer panels that replicate masonry and concrete textures.
- Open & Trellis: Solutions focused on airflow, transparency, and decorative applications.
Structural Strength and Acoustic Capability
The Elite framework combines durability with adaptability. Fireproof panels are engineered to resist more than 600 lbs. of horizontal pull-out force and allow up to 1,400 lbs. of vertical adjustment. Vertical channels create a 4-inch cavity that supports acoustic infill materials, including perforated back sheets for sound absorption and moisture control.
A structural Z-rail distributes panel weight evenly and prevents oil-canning, while optional Z-clips support larger panel configurations.
High-Performance Aluminum Sleeve for Taller Applications
For installations exceeding 10 feet or requiring corner and gate posts, PalmSHIELD offers a dedicated aluminum sleeve system. Designed to fit tubular steel posts 4 inches or larger, the sleeve delivers steel-like strength while maintaining compatibility with the Elite framework’s vertical compression profiles.
This solution is particularly suited for high-wind environments, taller panels, and gate-supported enclosures.
Rooftop and Ground Screening Compatibility

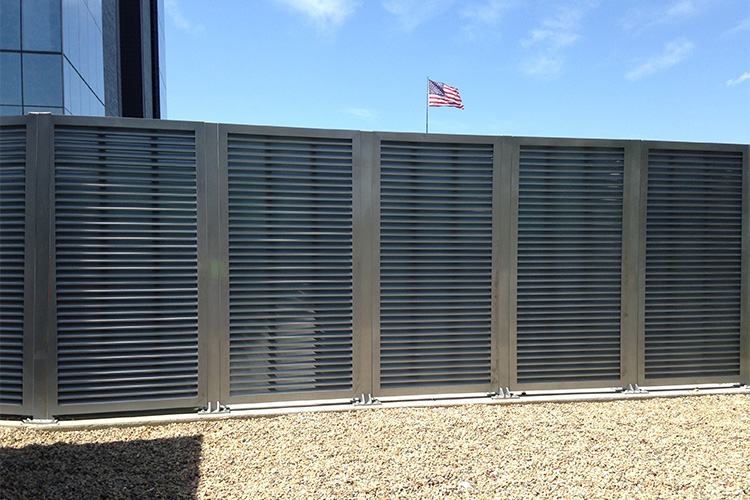

PalmSHIELD Elite extends beyond ground-level applications. When paired with the A1000 equipment screen rail and diagonal supports, the system can be engineered for rooftop installations, including HVAC and mechanical equipment enclosures.
Projects requiring gates for rooftop access are supported through the Elite Ground Screen System, which accommodates swing, drive, and cantilever gate configurations.
Specifications Overview
- Maximum panel width: 6 feet
- Panel height: Unlimited
- Material: 6063-T6 aluminum
- Columns: Custom 4" x 3" I-Beam with removable flange (patent pending)
- Fittings: Stainless steel, manufacturer-specified
By combining architectural precision, structural performance, and extensive customization options, PalmSHIELD Elite offers a comprehensive screening solution for both ground and rooftop environments.
