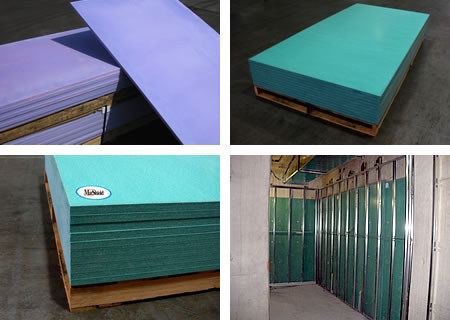

Borated Polyethylene for Neutron Shielding



MarShield™ borated polyethylene is used for medical, nuclear and industrial neutron shielding. It is light-weight, cost-effective and durable and can be used for a wide variety of shielding needs. With 5% boron by weight, our borated polyethylene is effective in many applications. Grade II (yellow, 1% boron) and Grade III (red, 2% boron) are also available. Common usage includes medical vaults and doors for linear particle accelerators and other radiation applications, research applications, nuclear reactors and construction of nuclear-powered vessels.

The Approximate Weight is 160 lbs / 72.57 kg
Sheet Size is 48" x 96" / 1219mm x 2438mm
Custom sheets, blocks and slabs also available.

  • 1" x 4' x 8' sheets allow for easy installation
  • Made of the finest polymers available
  • 1%, 2% or 5% boron content (by weight) or virgin formulas
  • high cross-section for consistent neutron attenuation
  • can be machined to your specifications
  • easily fabricated using standard woodworking tools

MarShield Borotron Borated PE
Lightweight, cost effective and easily fabricated.

Key Benefits

  • Lightweight and easy to handle compared with alternative shielding materials.
  • Easily fabricated.
  • Durable over a wider temperature range.
  • Consistent density and homogeneity.
  • Superior dimensional quality and flatness.
  • Strict quality control measures to ensure proper levels of elemental boron as well as material homogeneity.
  • Available in 1” x 48” x 96” sheets for simple installation in most applications.
  • Supplied in mill shapes, such as sheets, blocks and slabs.
  • Can be machined to your specifications.

Borotron ® Borated PE
Borotron ® Borated PE has been used as a medical and industrial shielding material to attenuate and absorb neutron radiation. This easily fabricated polymer material also offers designers greater durability and function over a wider range of temperature than traditional materials.

Borotron ® HD050
Is based on MarShield’s high performance HDPE with 5% elemental boron.

What is Borotron ® High Density PE for Neutron Shielding

  • HDPE material has a high hydrogen density which slows neutron particles down so they can be absorbed.
  • Boron has been added to the material to absorb the slowed neutron particles and significantly reduce byproduct gamma radiation that occurs during absorption.

Common Applications

  • Medical vaults and doors for linear particle accelerators and other radiation applications.
  • Hot cells.
  • Nuclear Storage and transport containers.
  • Nuclear detection systems.
  • Nuclear reactors and nuclear power plants.
  • Construction of nuclear-powered submarine vessels.
  • Research and test reactors.
  • Large neutron beam line applications.
  • High intensity X-rays.
  • Shielding for cancer treatment facilities

Note: Materials with hydrogen density are also used as a component in neutron shielding systems. If you’re looking for the broadest range of sizes and shapes in unified hydrogen rich material,

MarShield can meet your needs with TIVAR ®1000.

MarShield Borotron HD050

Material Notes:
Borotron ® HD050 is based on a high performance HDPE with 5% elemental boron. Borotron ® has been used as a medical and industrial shielding material to attenuate and absorb neutron radiation. This easily fabricated polymer material also offers designers greater durability and function over a wider range of temperature than traditional materials.

Physical Properties

Metric

English

Comments

Specific Gravity

1.01 g/cc

0.0365 lb/in³

ASTM D792


Mechanical Properties



Hardness, Shore D

71

71

ASTM D2240

Tensile Strength, Ultimate

16.6 MPa

2407 psi

ASTM D638

Elongation at Break

4%

4%

ASTM D638

Tensile Modulus

0.767 GPa

111.215 ksi

ASTM D638

Flexural Modulus

0.873 GPa

126.585 ksi

ASTM D638

Flexural Yield Strength

29.1 MPa

4220 psi

ASTM D638

Compressive Strength

24.5 MPa

3553 psi

10% Def., 73°F; ASTMD695

Compressive Modulus

0.672 GPa

97.44 ksi

ASTM D695

Izod Impact, Notched

0.481 J/cm

0.9 ft-lb/in

ASTM D256


Electrical Properties



Surface Resistivity per Square

Min 1e+012 ohm

Min 1e+012 ohm

ASTM D257


Thermal Properties



CTE, linear 68°

198 µm/m-°C

110 µin/in-°F

(-40°F TO 300°F); ASTM E831

Melting Point

128°C

262 °F

ASTM D3417

All statements, technical information and recommendations contained in this database are presented in good faith, based upon tests believed to be reliable and practical field experience. The reader is cautioned, however that MarShield & its affiliates cannot guarantee the accuracy or completeness of this information and it is the customer’s responsibility to determine the suitability of the products in any given application.
