Xypex at Southwest Regional Chilled Water Plant, East Lansing, Michigan, USA

Other News   Subscribe to FREE newsletter

May 05, 2026

The facility is designed to deliver efficient and reliable cooling to approximately 1.9 million square feet of west central campus buildings, including the Engineering and Digital Innovation Center and two residence halls. The plant was initially designed to provide 3,800 tons of cooling capacity, with infrastructure in place to support future expansion.

The system incorporates a combination of electric and steam turbine chillers housed within a large mechanical space located four stories below grade. Due to the elevated groundwater table at the site, the below grade concrete structures are subject to sustained hydrostatic pressure. To address these conditions, Xypex Admix C-500 NF crystalline waterproofing admixture was incorporated into the concrete used for the mat slab and below grade walls. Approximately 1,100 bags of Xypex Admix C-500 NF were added during batching.

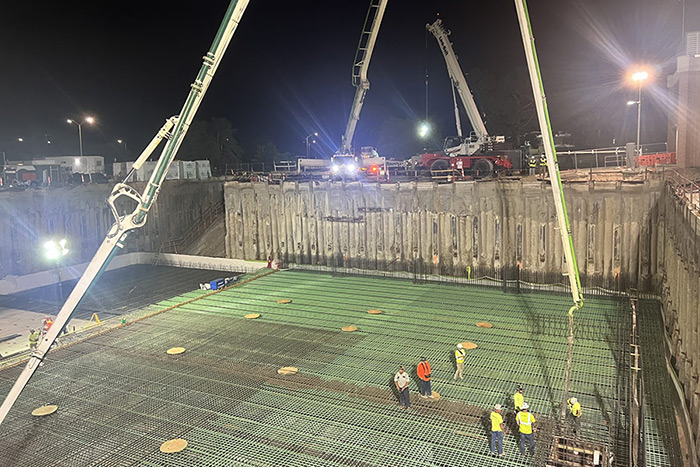

More than 5,000 cubic yards of concrete containing Xypex admixture were placed during a continuous overnight pour lasting approximately 14 hours, supplied by two ready mix plants to maintain placement continuity.

The integral crystalline system provides permanent waterproofing and enhances durability, reducing permeability and protecting the structure against groundwater intrusion. Based on the performance and benefits demonstrated on this project, Michigan State University has specified Xypex for two additional regional chilled water facilities planned to begin construction in 2026.
