Titus FlowBar Architectural Linear Diffuser

Other News   Subscribe to FREE newsletter

Sep 02, 2026

The FlowBar™ architectural linear diffuser system maximizes engineering performance without sacrificing aesthetic considerations for the designer. FlowBar’s outstanding performance allows higher airflows than conventional linear diffusers, with lower noise levels, making it ideal for high profile designs.

FlowBar also offers an installation alternative to the conventional linear diffuser. Conventional linear diffusers are supported by the duct system and in most cases are installed after the ceiling system is in place. For complete ceiling integration, the FlowBar system is offered with a large selection of flange styles compatible with various ceiling applications. Our unique clip/hanger support system allows for quick and easy installations.

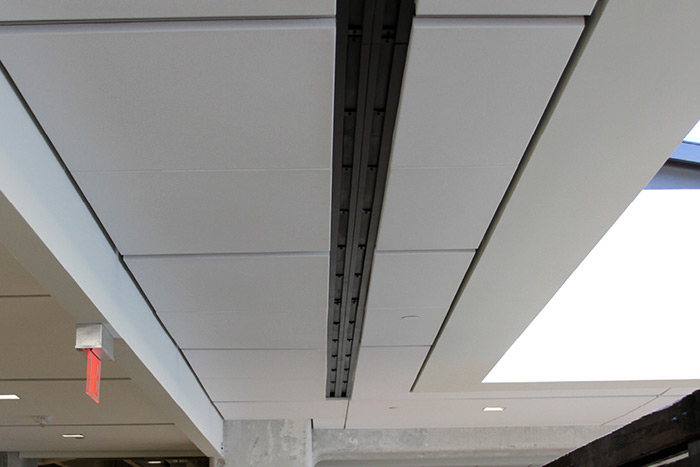

The FlowBar system actually supports and becomes an integral part of the ceiling system and is installed along with the ceiling suspension system.

Titus FlowBar offers a new concept of air distribution that fully integrates with all ceiling systems. The FlowBar system is available in continuous linear, incremental linear and square configurations. This entire series of diffusers is available with two unique pattern controllers.

The HighThrow pattern controller allows air to be directed to the left or right as well as downward when installed in a ceiling system. As air is directed in either direction horizontally, a surface effect is maintained, even at reduced volumes, to provide room air motion without drafts. This, along with its high induction characteristics, makes HighThrow an excellent choice for variable volume systems.

The JetThrow pattern controller allows the airstream to be directed to meet required comfort conditions. JetThrow is an excellent choice for high bay applications, perimeter zones requiring vertical projection and for side wall applications requiring extended throw.

Both HighThrow and JetThrow pattern controllers can be combined within a single FlowBar system.

ADDITIONAL FEATURES OF THE TITUS FLOWBAR SYSTEM INCLUDE:

• Single slot, large capacity linear diffuser offers the designer an alternative to other multi-slot linear diffusers
• Supports and fully integrates with various ceiling systems
• Reduces costs and installation difficulties associated with conventional linear diffusers
• Manufactured entirely from heavy wall extruded aluminum
• Available in 6-foot or 12-foot segments
• Standard accessories ensure straight and true installations
• All FlowBar models are available custom curved to meet designer’s requirements
• QuickClip® Mounting option allows installation after hard ceiling is installed
• All models available in HighThrow and JetThrow versions

FINISHES

• Standard Finish - #26 white border (black pattern controllers)
• Optional Finish - wood grain & anodized finishes available

Note: Border 22 and 55 are finished in #84 Black
